滾珠絲杠
滾珠絲杠傳動是將旋轉運動轉變?yōu)橹本€運動，或者將直線運動轉變?yōu)樾D(zhuǎn)運動的裝置。滾珠絲杠包括滾珠絲杠與滾珠螺母并和循環滾珠軸承一起組成套件。 滾珠絲杠與 螺母之間的界面通過滾珠軸承以匹配滾珠滾動的方式加以提供。 有了滾動單元，滾珠絲杠驅動摩擦系數很低，效率通常高于90%。 傳遞的力被分布在眾多滾珠軸承上，每顆滾珠上的負載都相對較低。
Thomson更多產品歡迎瀏覽：
Standard Ball Screws

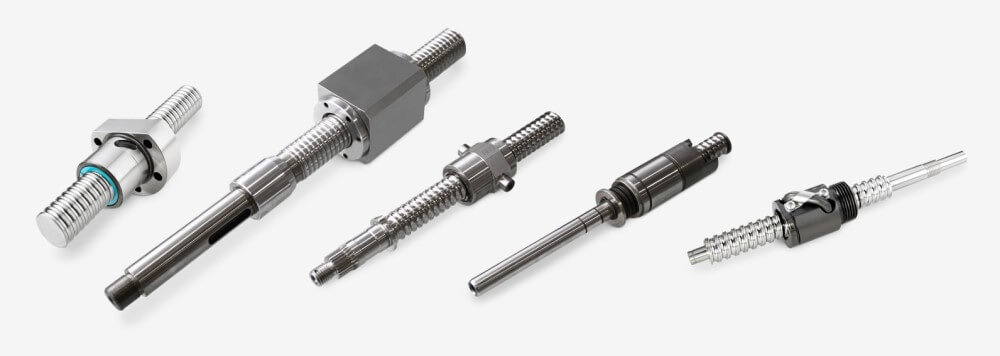

定制化滾珠絲杠選項
作為高精度、高負載應用的理想之選，公制和英制滾珠絲杠符合高規格的生產標準，內部摩擦阻力低，可將旋轉運動轉化為直線運動。
為何選擇Thomson滾珠絲杠？
并非所有精密滾珠絲杠都生而精密。Thomson對設計、質量、材料、生產和應用支持的專注使我們?cè)诟?jìng)爭中脫穎而出，也是我們持續數十年獲得成功的秘訣。
如果標準的Thomson滾珠絲杠不能滿足您的特定規格需求，我們的工程專家可為您的應用定制解決方案。無論是大量采購，還是簡單的部件修改或是復雜的裝配，我們都可以根據您的需求定制功能來提高機器的性能。
不知從哪里入手？??
Thomson提供豐富的在線資源，無論您的購買決策處于哪個階段，都可以為您提供幫助：
Thomson滾珠絲杠有哪些用途？
憑借高質量、長使用壽命和可靠的支持服務，Thomson滾珠絲杠占據全球市場已有將近1個世紀。本視頻介紹Thomson滾珠絲杠生產過程、選型、定制選項、應用以及在線資源等。觀看視頻后，您也可以反問自己“Thomson滾珠絲杠對我而言有哪些用途？”
VIDEO: Thomson Smart Actuators: Designing Smart Machines with Smart Tools
視頻：充分改善直線運動設計的負載能力、使用壽命和緊湊度
實施任何新應用都需要對產品性能、使用壽命和成本進行仔細分析，尤其是需要處理大負載的應用。了解為何應在未來的直線運動應用中考慮使用高負載滾珠絲杠而不是標準滾珠絲杠。
演講人： Markus Brändle，產品線專家 - 絲杠、螺旋升降機和LB&G，Thomson Neff Industries，德國
視頻：技術技巧：如何將滾珠軸承安裝到公制系列滾珠螺母上
如何將軸承重新安裝到單循環滾珠螺母上。通常滾珠螺母是單循環滾珠螺母。但該技巧也適用于滾道循環滾珠螺母。
借助Thomson Electrak HD直線執行器的同步選項，Spika Design and Manufacturing公司為客戶打造性能、功能性和安全性更出色的作業平臺。
Technical Articles
-
Because ball screws are available in both inch and metric dimensions, designers sometimes begin the specification process by selecting a product family based on the unit of measure. This decision may prematurely exclude the ideal product for the application and lead to significant losses in time, labor and expense. This article explains how sizing and selection questions centered on performance – instead of product monikers – can lead to more efficient linear motion designs.
-

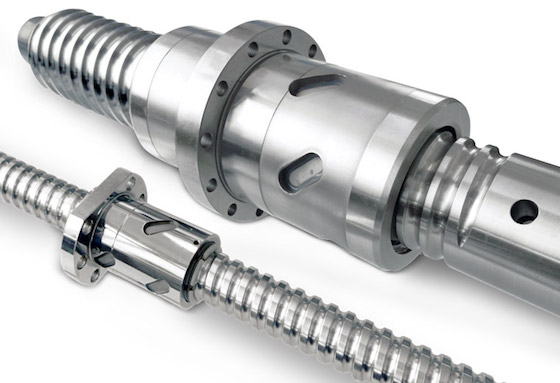

Roller screws have been promoted as the only technology of choice for handling large loads when size is a constraint.?But in actuality, advances?in ball screw technology have now enabled the capability?to?support high-load applications as well. This is important because a high-load ball screw is typically less than half the cost of a comparable roller screw at equivalent performance points.?
-

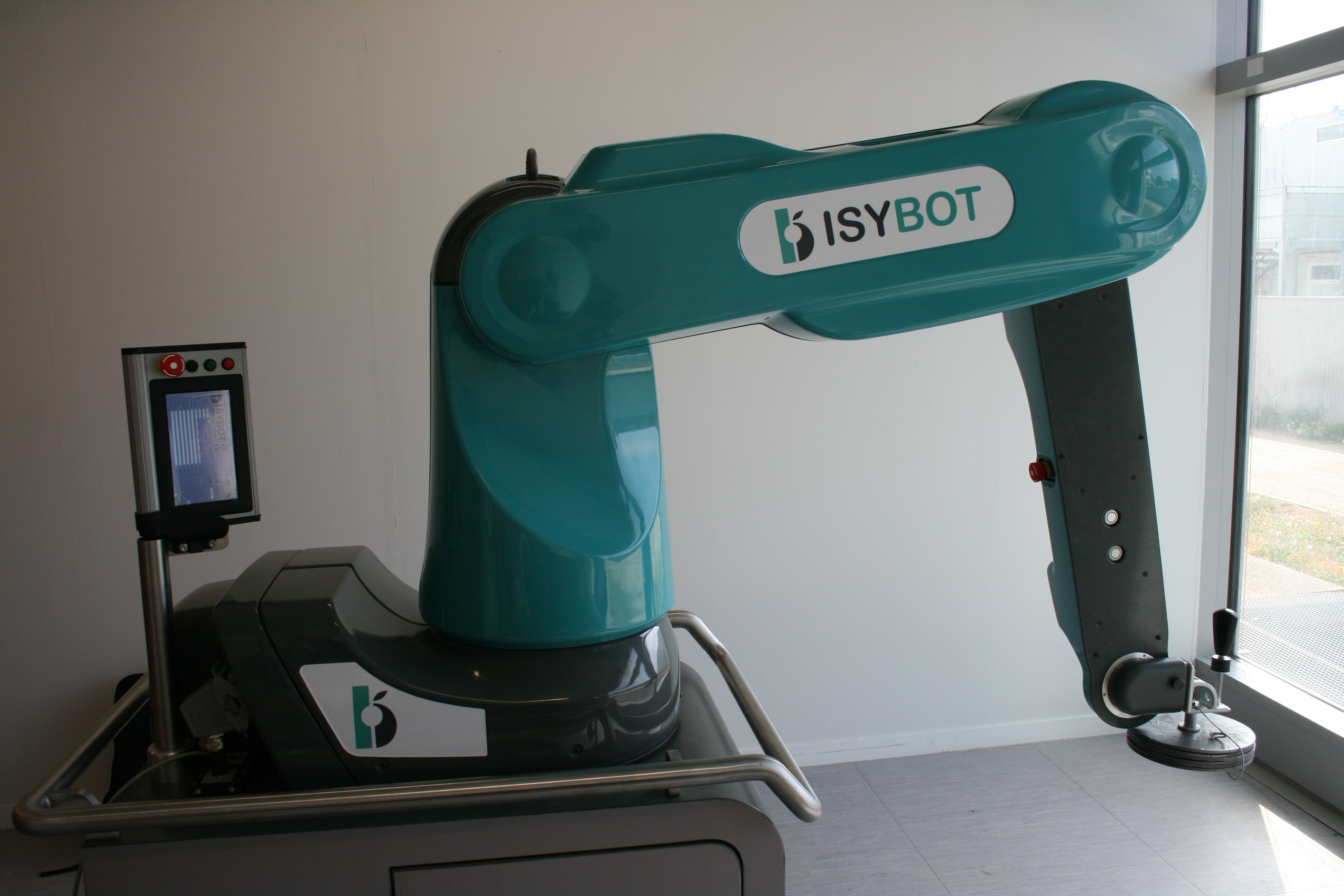

滾珠絲杠–協作機器人安全高效運動的秘訣
Used in large-scale production applications that involve continuous lifting operations but still require a human touch, collaboration robots (cobots) are gaining popularity. A French?cobot?maker has developed a solution that uses ball screw and cable actuators instead of gears, setting a new benchmark for?cobot?efficiency and safety.
| 滾珠絲杠組件 | |||
| 滾珠螺母 | |||
| 末端支撐 | |||
| 絲杠 | |||
| 附件 |
